Parts of a Ship: Explaining Names and Functions of Boat Parts
By: Bradley Axmith
Our boating editor describes the parts of a boat for those new to maritime activities.
The difference between a boat and a ship is usually size. Some say a boat can fit on a ship and that defines the difference. But the parts of a ship have the same name as the parts on a boat.
This article details the names and explains some of those parts with some diagrams. It includes both larger and smaller vessels.
Ships are complex vessels, each designed with an array of structural components that serve specific functions critical to their operation and safety. From the bow at the front of the ship to the stern at the back, each part plays a vital role in the ship’s performance, stability, and ability to withstand the harsh marine environment.
Quick List of Boat Parts

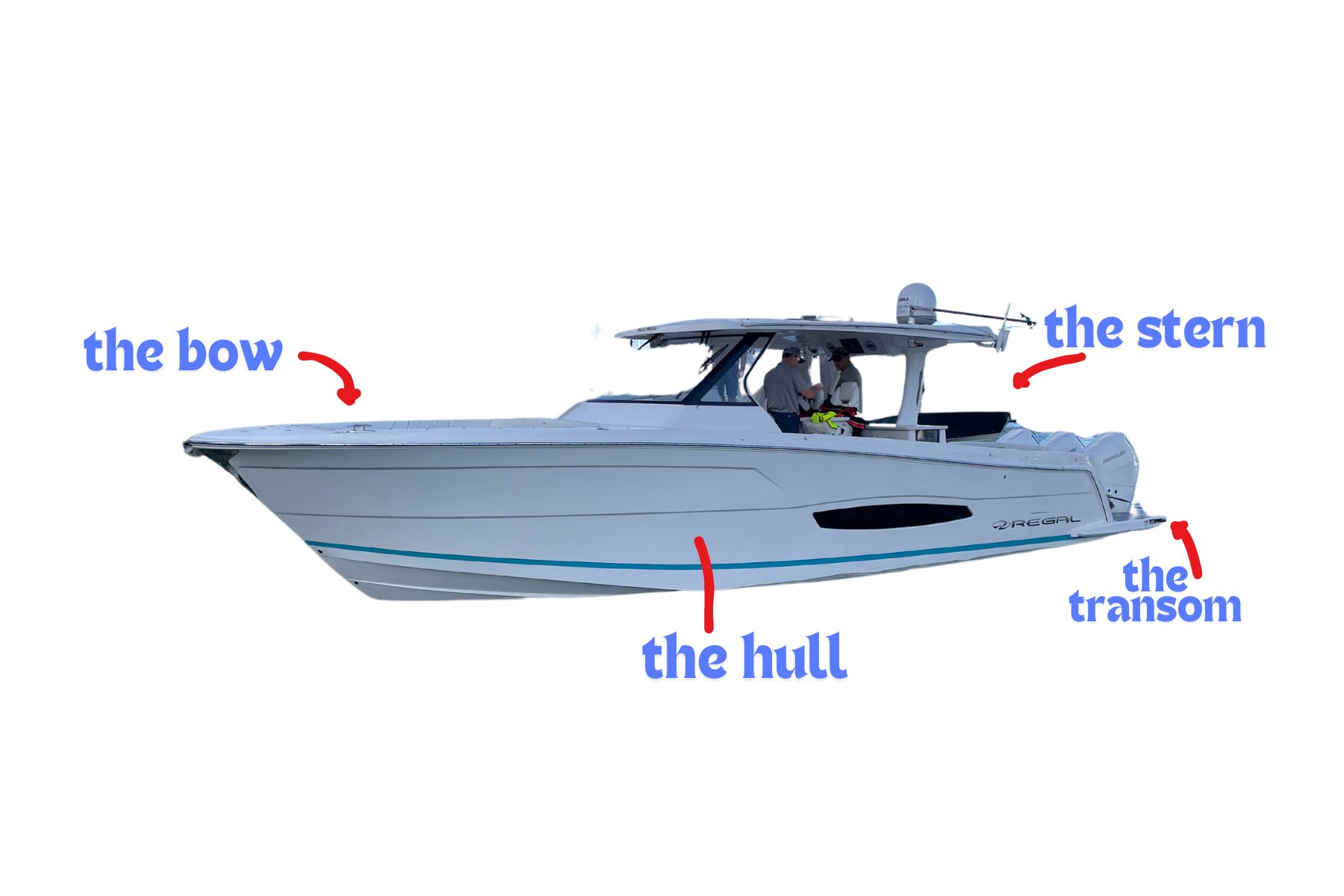

Bow – The front of the boat
Stern – The very back of the boat
Cockpit – Enclosed area toward the back, historically where the steering was done but primarily where seating is at the aft
Aft – in the back part of the boat, not the very back (stern)
Hull – the body of a vessel from the keel to the railing
Keel – the very bottom of a boat from the bow to the stern
Pilothouse – the cabin that encapsulates the helm
Helm – the controls of a boat from which it is piloted
A ship’s hull is the main body of the vessel from keel to railing. It provides buoyancy and houses most of the cargo and machinery including engines.
Above the hull on larger ships, the towering superstructure contains the bridge, where the crew controls and monitors the vessel’s course and speed. The same can be said of yachts with bow-to-stern lengths that exceed 60 feet.
The deck of a ship serves as a working surface and is where features such as the anchor and mooring equipment are located. Not to be confused with deck boats, it’s any level on a vessel where people stand and walk through.
Bigger ships will have many decks, whereas smaller vessels, like sailboats or motor boats will have just an above and below deck.
Accommodations are constructed within the ship for crew members, ensuring they have the necessary provisions for extended voyages at sea. These combined elements, all meticulously integrated, allow a ship to perform its intended functions, ranging from transporting goods across continents to facilitating naval defense operations.

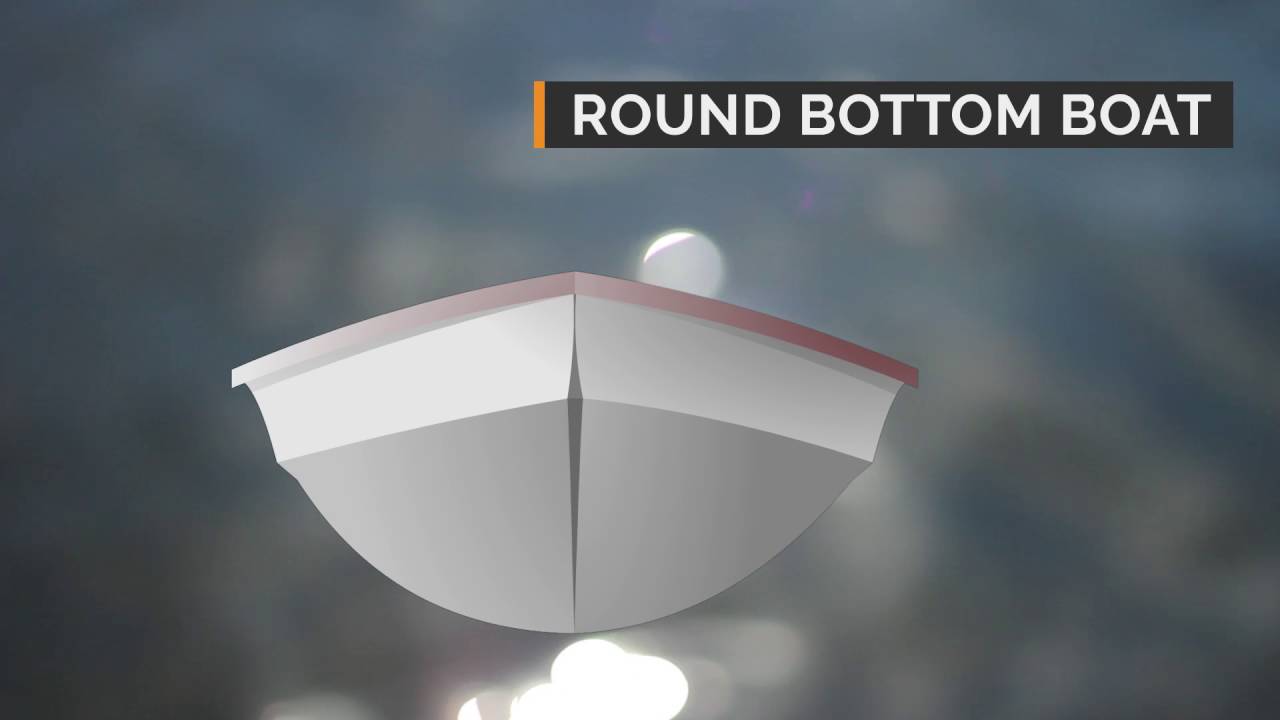

Hull Design
The design of a ship’s hull is a critical aspect that affects its sea-keeping abilities, structural integrity, and overall performance. The hull determines how a vessel interacts with the water, supports the load, and withstands the maritime environment.
Structural Components
In shipbuilding, structural components form the backbone of a ship’s hull. They provide the necessary strength and rigidity to withstand the stresses encountered at sea.
Key structural elements include:
- Keel: Serving as the ship’s spine, the keel runs along the bottom and is one of the most important structural elements, providing foundational support.
- Frames: These are the rib-like structures attached to the keel, which give the hull its shape and structural strength.
- Bulkheads: These vertical partitions subdivide the internal spaces of the ship, offering enhanced structural integrity, creating watertight compartments, and improving safety.
- Double bottom: An essential safety feature that consists of two layers on the bottom of the hull, providing protection against grounding and reducing the risk of sinking.
- Side Shell: The sides of the hull are made of strong steel plating, which reinforces the ship’s structure and helps to maintain watertight integrity.
Hydrodynamics and Stability
Understanding and optimizing the hydrodynamics and stability of a ship are pivotal for efficient operation.
Design elements that come into play include:
- Bulbous bow: A protruding structure at the bow, designed to reduce wave resistance at certain speeds, which can result in fuel efficiency and smoother sailing.
- Freeboard: This is the distance from the waterline to the upper deck level, which is critical in preventing water from coming on board.
- Waterline: A fundamental design reference line around the hull that indicates the depth to which a ship is submerged when afloat.
- Hydrodynamic considerations: The shape and contours of the hull affect how the ship moves through the water, impacting resistance and efficiency.
In crafting a hull, designers must balance these factors with care: a vessel’s performance, sustainability of materials like steel, and the quality of plating are as essential as its ability to navigate and remain stable in a variety of marine conditions.
Navigation and Control
Navigation and Control are central to a ship’s ability maneuver through the water without mishap. This section focuses on the integral components that make up a ship’s navigation and control systems, specifically the Steering Systems and Bridge Equipment.
It’s also crucial to understand the Rules of the Road to prevent collisions.
Steering Systems
Ship steering systems are essential for directional control and are primarily composed of the rudder and steering gear.
The rudder acts as a hydrofoil, swiveling on its axis to create lateral force, which changes the ship’s direction. The size and effectiveness of the rudder directly impact a ship’s maneuvering capabilities.
The steering gear, part of the broader navigation system, is located at the helm and allows the ship’s captain to steer.
Modern ships may also be equipped with bow thrusters. On most longer cabin cruisers with bow thrusters, a propeller is located toward the front of the boat along the keel. They are controlled by a stick at the helm.
These devices, situated at the forward part of the hull, provide lateral thrust, giving additional maneuvering ability when docking or navigating through narrow channels.
Additionally, when two or more engines (sterndriver or outboard) are at work, a joystick can be used to rotate 360 degrees or to drift laterally in toward a dock.
The video below demonstrates how this works.
Some digitalization of steering has developed in recent years that make automatic adjustments when docking, as seen above. Additionally, adjustments to trim flaps are also part of integrated steering systems.
The Volvo Penta stern drives are great examples of these digitally integrated steering systems.
Bridge Equipment
The bridge serves as the command center for navigation and operational control on larger ships, including superyachts.
On the navigation bridge, a suite of equipment is used to ensure safe passage. This includes:
- Radar Systems: Allows for object detection and collision avoidance.
- Electronic Chart Display and Information System (ECDIS): Digital navigation chart system that enhances the crew’s ability to plan routes.
- Autopilot System: Automates the steering of the ship, reducing manual input from the navigator.
- Communication Equipment: Enables consistent and reliable communication with other ships and coastal services.
Accessibility to the engine room from the bridge is vital, as it houses the propeller and machinery needed for propulsion and navigation.
Such a layout ensures that any adjustments to the ship’s speed or direction can be coordinated promptly and efficiently.
Deck Arrangement
The deck arrangement of a ship is meticulously designed to optimize the use of space for cargo handling, crew activities, and passenger amenities. Each deck has a specific purpose, from the main deck, which primarily handles cargo operations, to the accommodation areas for the crew and passengers.
Cargo Handling
Cargo operations largely occur on the main deck and in the cargo holds of a ship.
Hatch coversto protect the cargo holds and are equipped to allow for efficient loading and unloading.
Ships may feature cranes or derricks strategically placed on the deck to handle the cargo.
For instance, bulk carriers often use a series of derricks for the movement of goods in and out of the holds. The weather deck is also involved in cargo handling procedures, designed to withstand harsh conditions while transporting goods across the sea.
Passenger and Crew Areas
Above the cargo holds, ships offer designated spaces for the accommodation of the crew and, if applicable, passengers.
Officers typically have cabins near the bridge on the upper deck, symbolizing their hierarchy and decision-making roles.
Crew members’ quarters are separate, often located in the lower deck areas, ensuring they have easy access to the galley, hospital, and paint room.
Passenger facilities, if present, such as the salon and cabins, are usually found on the upper deck or main deck, offering comfort and scenic views.
The poop deck at the very rear of the ship offers outdoor space for leisure and observation.
Propulsion and Machinery
Propulsion systems are the heart of a ship’s operational capabilities, directly influencing fuel efficiency and performance.
Precise and reliable machinery within the engine room guarantees the vessel’s smooth traversing across the ocean. The engine room is where the main engine and its fuel systems are housed, with the auxiliary machinery supporting navigational and safety functions.
Engines and Fuel Systems
Ship propulsion largely depends on the main engine, which can be a diesel, gas turbine, or nuclear reactor.
These engines convert the energy from fuel, typically heavy oil stored in bunker tanks, to mechanical power, driving the ship forward.
Fuel efficiency hinges on engine design and the quality of fuel oil used.
To streamline this process, modern vessels are equipped with advanced fuel systems managing fuel delivery and combustion for optimum efficiency.
Auxiliary Equipment
Auxiliary equipment is essential for a ship’s overall functionality, including safety and crew comfort.
The emergency generator room houses systems ensuring power supply during emergencies, while the refrigeration system and air conditioning maintain temperature control for perishable goods and onboard living spaces.
Additionally, sustainability is addressed with the sewage treatment plant, processing waste and minimizing environmental impact.
These auxiliary systems indirectly support the propulsion system by maintaining optimal conditions for both machinery and personnel.
Safety and Regulations
When it comes to the safety of ships, the International Convention for the Safety of Life at Sea (SOLAS), 1974 is the key standard ensuring that ships comply with mandatory safety requirements. As established by the International Maritime Organization (IMO), SOLAS specifies minimum standards for the construction, equipment, and operation of ships, compatible with their safety.
Lifeboats are a critical part of onboard safety features.
SOLAS requires that all ships must carry enough lifeboats to accommodate everyone on board, along with additional lifesaving appliances. The integrity and functionality of these lifeboats are crucial for evacuation in an emergency.
The convention also outlines that firefighting equipment must be readily accessible in case of a fire outbreak.
Regular drills and strict maintenance schedules ensure that both the equipment and the crew are prepared to handle fire-related emergencies effectively.
Ballast tanks, which are compartments within a vessel that hold water to provide stability, also have a direct impact on ship safety.
Proper management of ballast water is essential not only for the safe operation of the ship but also to prevent environmental pollution.
Regulations concerning sewage disposal ensure that the ship’s waste does not contaminate the marine environment.
Sewage systems are designed to treat or hold waste for discharge at designated facilities ashore.
Similarly, garbage management onboard is regulated to minimize marine pollution.
Ships are required to have garbage management plans and are forbidden from discharging plastics and other forms of garbage into the sea. Garbage disposal activities must comply with regulations to ensure they do not pose a hazard to marine life or other vessels.
